Construction of 6 social housing units and a business premises, Paris 18

Atelier d'Architecture Ramdam - Elogie-Siemp

 Published in March 2023

Sheltered from the hustle and bustle of Place Clichy, in a discreet, narrow alleyway linking the avenue to the boulevard, the Passage Lathuille can be discovered.
Characteristic of the faubourien fabric in the north of the capital, the Passage Lathuille seems to have been built up over the years by successive additions, creating a diversity of epannelages and recesses. These breathtaking features open up views towards the depths of the blocks, create terraces and allow light to penetrate.

With a single facade, the project continues this play of sedimentation in search of angled views and multiple orientations. Two off-axis volumes are set back from each other to create corner windows and terraces, and to escape the strong vis-à-vis by opening up to the east.

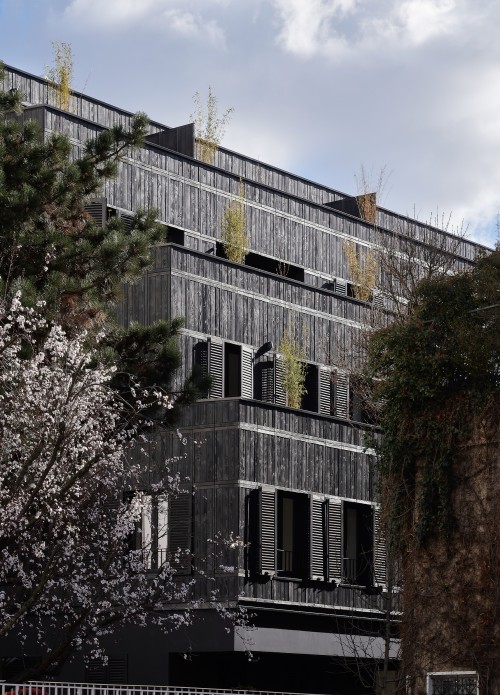

Between continuity and rupture, their facades develop distinct styles, with spandrel windows and lime rendering in continuity with the neighboring building, and full-height windows and louvers clad in chestnut battens set back.
Particularly well-suited to the plot's small size and access constraints, a timber-framed floor and wall structure is set on a concrete plinth that runs along the facade and takes up the alignment of the passage's artisanal first floors.
Informations
Project owner
Elogie-Siemp

Architects
Atelier d'Architecture Ramdam

Engineers
EVP (Structure), Ai environnement (Fluides & HQE), ICTEC (Economist)

Photographer
Salem Mostefaoui

Address
7 passage Lathuille, 75018 Paris

Performance
Paris Climate Plan, Biosourcé level 3, NF Habitat HQE

Surface area
341m² GFA + 60m² SU

Cost of works (excl. VAT)
1.5 M€ EXCL.

Materials
100% wood construction above ground level (floors, walls, facade, roofing), chestnut cladding, lime coating on wood fiber, larch joinery, zinc roofing
